Description
Custom Double Wall Tuck Front Boxes Built Stronger, Sealed Tighter, Printed Sharper
You need a box that holds heavier products without buckling, seals without tape or glue, and still looks polished enough to sit on a retail shelf or land on a customer’s doorstep looking sharp.
Most standard folding cartons do one of those things. A regular tuck box is economical, but the walls flex under weight and a single-layer front bows with even moderate pressure. Corrugated shippers are strong but look industrial. Rigid boxes are expensive and slow.
Custom double wall tuck front boxes from Hexa Custom Boxes solve all three problems in one structure. Rolled double-thick side walls resist crushing and bowing. Cherry locks secure the front panel without any adhesive. Dust flaps seal the top opening against contamination. The whole thing ships flat, builds in seconds, and prints beautifully.
What a Double Wall Tuck Front Box Actually Is
Before anything else, let’s clear up a naming issue that trips up a lot of buyers. You may see this box called any of these names depending on the supplier:
- Double Wall Tuck Front Box (DWTF)
- Roll End Tuck Front Box (RETF)
- Tuck Front Mailer Box
- Roll End Tuck Top (when the lid tucks into the front rather than over it)

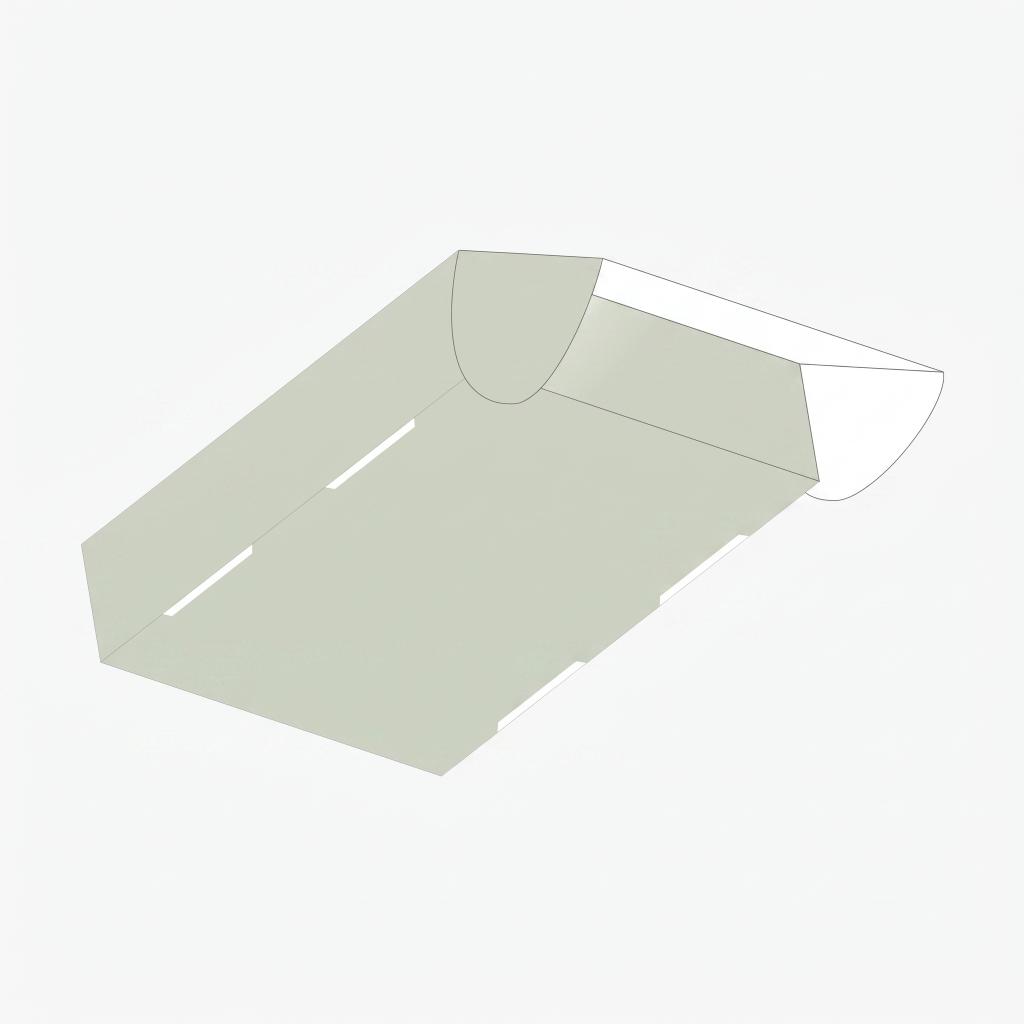

They all refer to the same core structure, a one-piece die-cut carton where the side panels roll over to form double-thick walls, with a lid that tucks into the front panel to close. The minor variations are in whether the lid closes over the front panel or tucks inside it, which affects the finish of the front face. We will cover that below.
The key structural features, in plain English:
Rolled double walls: Each side panel is folded over itself before it locks into the tray. This creates a double layer of board on every side wall, which is what gives this box its strength. It is why you can pack heavier items in it without the walls bowing outward.
Cherry locks: The front tuck panel has two die-cut tab locks, one on each side, that slot into matching cuts on the side walls when the front is tucked closed. They hold the front panel firmly in place without glue. This is what keeps the box from popping open in transit or on the shelf.
Dust flaps: Small flaps on either side of the lid opening fold inward before the main lid tucks in. They close the gap at the top corners of the box, blocking dust, moisture, and small contaminants from getting in around the edges of the lid.
Air gap insulation: Because the side walls are rolled rather than flat, a natural air pocket forms between the two layers of board. This gives the box a mild insulating effect against temperature and humidity fluctuations. Not a substitute for cold-chain packaging, but a genuine benefit for products sensitive to environmental changes during transit.
Tuck Front vs Tuck Top: The Difference That Actually Matters
This is the question buyers ask most often and almost nobody answers clearly.
| Feature | Tuck Front (RETF / DWTF) | Tuck Top (RETT) |
|---|---|---|
| Lid closes | Over the outside of the front panel | Into the inside of the front panel |
| Front panel finish | Clean, no visible cut edge | Small tuck edge visible at top of front |
| Best for | Retail shelf, premium presentation | Ecommerce mailers, display-on-open |
| Structural strength | Equal rolled double walls on both | Equal rolled double walls on both |
| Assembly | Lid wraps over and locks | Lid tucks in and locks |
Choose tuck front when the front face needs to look finished and clean on a retail shelf. Choose tuck top when the lid folding back to reveal contents is part of the unboxing experience.
When to Use a Double Wall Tuck Front Box
This box earns its keep in specific situations. Here is an honest breakdown.
| Product Type | Why It Fits | Recommended Material |
|---|---|---|
| Heavier retail products (500g and up) | Rolled walls resist bowing under weight | 18 to 24pt SBS |
| Cosmetics and skincare sets | Clean front for premium print, dust flaps keep product pristine | 20 to 24pt SBS |
| Candles and glassware | Double walls absorb sidewall pressure during stacking | 24pt SBS or E-flute corrugated |
| Bakery and food items | Rolled walls add rigidity, dust flaps block contamination | Kraft or food-safe SBS |
| Electronics and accessories | Strong structure protects against shipping impact | E-flute corrugated |
| Gift sets and bundles | Substantial feel in hand, premium print surface | 22 to 24pt SBS |
| Subscription mailers | Ships flat, fast to assemble at scale, reclose-able | 18pt SBS or E-flute |
How to Assemble a Double Wall Tuck Front Box (Step by Step)
No competitor explains this clearly. Here is exactly how it goes together.

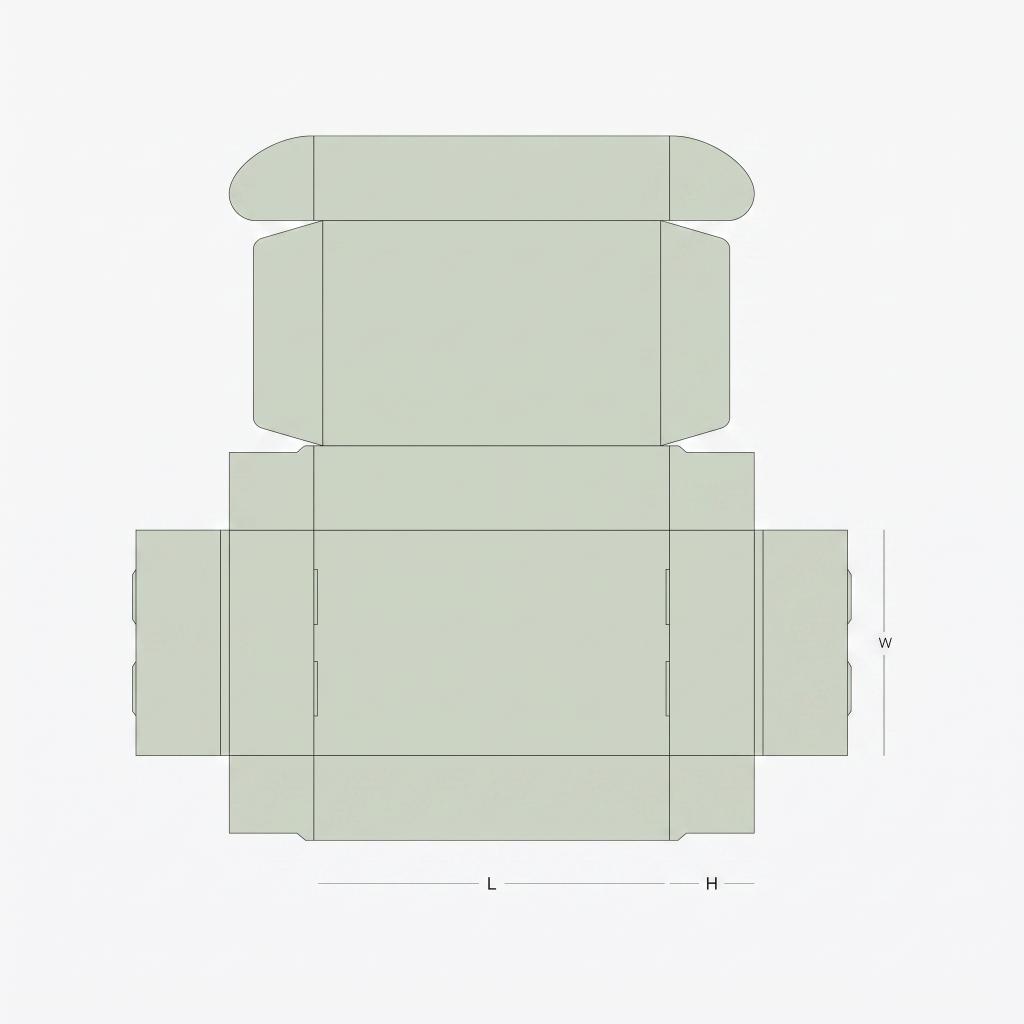

- Start with the flat, die-cut blank. The tray base is already scored and creased.
- Fold the two side panels upward along their score lines.
- Roll each side panel inward so the outer layer folds over the inner layer, forming the double wall. The rolled edge locks inside the tray.
- Fold the dust flaps inward at the top of each side wall.
- Close the lid by bringing the front tuck panel down and over the front of the box.
- Slot the two cherry locks on the front panel into the side wall cuts until they click into place.
Total time from flat to closed: about 10 to 15 seconds per box by hand. No glue, no tape, no tools.
Board and Material Options
The right board weight determines whether the box feels premium or flimsy in hand.
| Material | Best For | Feel |
|---|---|---|
| 16pt SBS | Lighter products, cost-sensitive runs | Standard folding carton |
| 18pt SBS | Most retail products, cosmetics, food | Solid, confident |
| 20 to 22pt SBS | Heavier items, premium retail | Substantial, premium |
| 24pt SBS | Gift sets, luxury, heavier goods | Rigid-feeling front panel |
| Kraft (uncoated) | Natural, eco, artisan brands | Earthy, recyclable-forward |
| E-flute corrugated | Fragile, heavy, or ecommerce transit | Protective, stackable |
For most retail applications, 18 to 22pt SBS hits the sweet spot between a premium feel and a sensible unit cost.
Premium Print Finishes That Land Sharp on a Double Wall Surface
The flat, firm front panel is the best print surface of any folding carton style. Here is how to use it.
- PMS spot color matching for true, consistent brand color
- Full CMYK for photographic or multi-color artwork
- Spot UV for high-contrast logo and accent shine
- Foil stamping, hot or cold, for metallic brand marks
- Soft-touch matte lamination for a velvety, expensive feel
- Embossing and debossing for tactile logos and patterns
Because the front is doubled and firm, foil and embossing hold their definition better here than on a single-layer panel. That is the structural advantage most brands never take full advantage of.
Packaging Expert Tip: Put Your Hero Element on the Cherry Lock Panel
Here is something nobody else will tell you. The front panel of a double wall tuck front box is the most rigid, flattest surface on the whole carton, because it is doubled and locked at both sides by the cherry locks.
That means it is the ideal spot for:
- A foil-stamped logo that needs a hard surface to hold its edge definition
- An embossed brand mark that will stay crisp through thousands of open and close cycles
- A Spot UV accent that benefits from the panel staying flat and square
Do not put your hero brand element on the side panels. They are strong, but the rolling structure means they are not perfectly flat. Put the logo and the premium finish treatment on the front face, where the structure supports it best. That is where perceived value is highest and where the camera lands in every product shot.
What Every Hexa Order Includes
These terms apply to every order without exception or fine print:
- No die charges and no plate charges, zero hidden setup fees
- Low 100-box minimum for test runs or full production
- 8 to 10 business day turnaround from approved artwork
- Free dielines and ready-to-use templates
- Free 24/7 structural and print support from real packaging people
- 100% recyclable board stock on every order
The Box That Ships Flat, Builds in Seconds, and Holds What Cheaper Boxes Cannot
Strong rolled walls, cherry lock security, dust flap protection, and a front panel that prints like a premium canvas. It ships flat, builds without glue, and handles heavier retail and ecommerce products the way a standard tuck box simply cannot.
Get your free quote today. No setup fees, low 100-box minimum, delivered in 8 to 10 business days.
