Custom 5ml Vial Boxes Built to the Actual Vial, Not a Generic Small-Vial Size
The most common error in 5ml vial box ordering is treating the 5ml volume as if it describes the physical dimensions of the vial. It does not. Five milliliters is how much liquid the vial holds. The physical dimensions of a 5ml vial vary significantly depending on what the vial is for and how it is closed.
A pharmaceutical injectable 5ml vial is approximately 22mm in diameter and 42mm tall with a 20mm aluminum crimp cap. An essential oil roller ball vial is approximately 19mm in diameter and 62mm tall with a roller ball cap that adds another 15mm. A cosmetic dropper vial is similar in diameter but with a bulb dropper cap that adds 30 to 50mm above the body. A perfume decant vial might be 15mm wide and 80mm tall.
All of them hold 5ml. None of them fit in the same box.

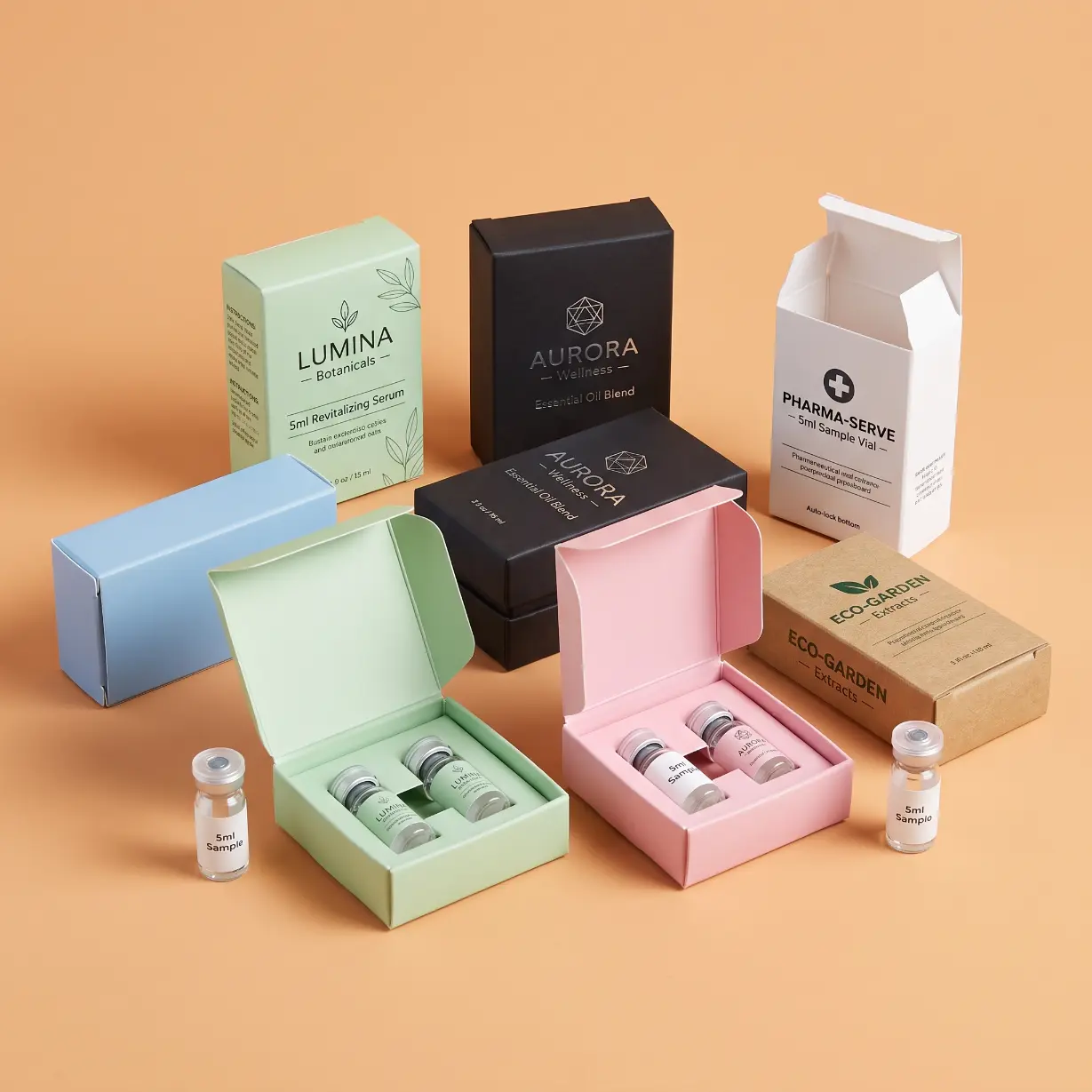

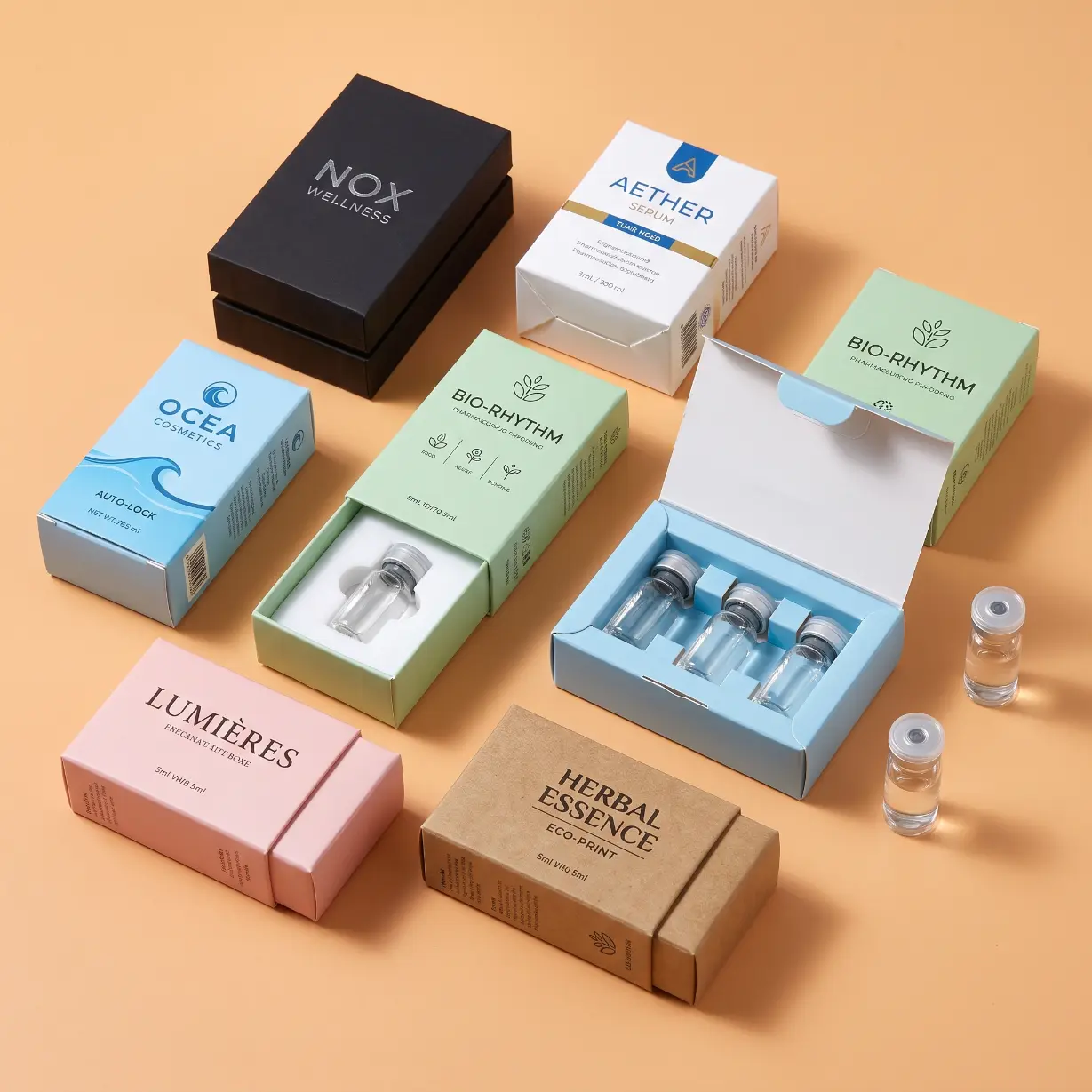

Custom 5ml vial boxes from Hexa Custom Boxes are built from the actual vial format and its installed dimensions, not from the volume printed on the label.
The Three 5ml Vial Formats and What Each Needs in a Box
This is the structural framework that every competitor skips and the one that determines whether the box you order actually fits the vial you have.
Format 1: ISO 4R Pharmaceutical Crimp Vial
The ISO 4R designation covers the 4ml to 5ml pharmaceutical vial range. Standard dimensions are approximately 22mm outer diameter and 40 to 45mm body height with a 20mm aluminum crimp cap. Total installed height including crimp cap: approximately 55 to 62mm.
Right box interior: 28mm x 28mm x 68mm minimum (vial OD plus 3mm foam clearance per side, total height plus 8mm lid clearance).
Right format: Folding carton SBS for pharmaceutical retail and dispensing. Rigid magnetic for premium commercial applications.
Format 2: Essential Oil and Roller Ball Vial
Essential oil 5ml vials are typically narrower and taller than pharmaceutical vials. A 5ml roller bottle has a diameter that is likely to be around 19 to 20mm but shorter at 62 to 65mm for the glass body before the roller ball cap. The roller ball cap itself adds approximately 15 to 20mm above the vial body. Total installed height including roller ball: 75 to 85mm.
Right box interior: 25mm x 25mm x 92mm minimum (19mm vial OD plus 3mm clearance per side, 82mm total height plus 10mm lid clearance).
The roller ball cap is the most common source of sizing error on essential oil vial boxes. Buyers measure the glass body height and forget the roller ball, then order a box the vial will not fit into.
Right format: Natural kraft for artisan and organic brands. SBS folding carton for retail shelf. Rigid for premium gift sets.
Format 3: Cosmetic Dropper Vial
Cosmetic serum and CBD oil dropper vials at 5ml are typically 22 to 24mm in diameter with a glass body height of 55 to 65mm. The rubber bulb dropper cap adds 30 to 50mm above the body depending on cap type. Total installed height including dropper: 85 to 115mm.
Right box interior: 28 to 30mm wide and 100 to 125mm tall minimum.
The dropper cap is even taller above the vial body than the roller ball, making it the format most likely to be ordered with an undersized box. Always measure the assembled dropper cap height before specifying.
Right format: SBS for retail cosmetic shelf. Kraft for organic and natural brands. Rigid two-piece for premium gifting.
The 5ml Essential Oil Market: What This Size Means Commercially
The 5ml volume occupies a specific commercial position in the essential oil market that determines the packaging format, the buyer, and the price point.
A 5ml bottle holds about 100 drops of essential oil. The 5ml is the travel and sample size format in the essential oil market, used for product trials, concentrated blends of rare or expensive oils, and sample marketing kits.
This commercial context has direct packaging implications:
Sample and trial format: A 5ml essential oil used as a product sample needs packaging that looks considered but stays cost-effective. A folding carton in natural kraft with a dark ink brand name and botanical detail is the right format. The packaging signals quality without the premium cost of a rigid box.
Concentrated rare oil: A 5ml bottle of premium sandalwood, rose, or oud essential oil at $30 to $100+ per unit needs packaging that communicates the value of the product inside. A rigid two-piece box with a foam insert and a matte or soft-touch exterior is the right format.
Sample kit inclusion: A 5ml vial as part of a 6-pack or 12-pack gift set needs packaging that holds the vial in the kit insert without requiring a separate individual box. A custom insert tray in a multi-vial outer box handles this more efficiently than individual folding cartons for each vial.
UV Protection for Essential Oil Vials: Amber Glass and Box Materials
Essential oil compounds are photosensitive. UV radiation degrades terpenes, esters, and other volatile aromatic compounds over time, which changes the scent profile and reduces the therapeutic value of the oil.
Amber glass vials: The primary UV protection. Amber glass blocks approximately 95% of UV light below 450nm. Essential oil brands that value product integrity use amber rather than clear glass vials for any oil that will be stored or displayed under retail lighting.
Box UV-blocking: The outer box provides a secondary UV barrier when the vial is in storage or transit. A standard SBS folding carton provides negligible UV protection through the board itself. For brands that want additional UV protection at the outer packaging level:
- Specify an opaque (non-windowed) box to eliminate direct UV exposure through the packaging.
- For extended retail display where the box sits under store lighting for weeks, specify a UV-blocking laminate on the outer panels.
- Avoid clear window panels on essential oil vial boxes if UV protection is a product claim. A window eliminates the UV barrier at the window zone.
The combination of amber glass vial plus opaque outer box is the most effective two-stage UV protection system for premium essential oil packaging.
Multi-Vial Gift Set Configurations for 5ml Essential Oils
The essential oil gift set market at 5ml is significant and has its own packaging brief that is distinct from single-vial packaging.
| Gift Set Configuration | Box Format | Insert Type | Common Application |
|---|---|---|---|
| 3-vial sampler set | Folding carton SBS or rigid, 3-slot insert | Triple-slot EVA foam or kraft cradle | Introductory sampler, seasonal gift |
| 6-vial essential oil collection | Rigid two-piece or folding carton | Six-slot EVA foam tray | Themed collections (citrus, florals, blends) |
| 12-vial complete collection | Rigid two-piece or mailer with insert | Twelve-slot foam or molded pulp | Full brand range, premium gift set |
| Roller ball duo or trio | Folding carton or sleeve and tray | Double or triple-slot EVA | Bestseller pairs, introductory kits |
| Sample and full-size pairing | Two-tier insert in one outer box | Upper tier 5ml, lower tier 15ml | Upsell format, brand introduction |
For multi-vial essential oil gift sets, the insert drives the box dimensions. Build the insert to the vial dimensions and the number of vials first, then dimension the outer box to the insert footprint.
Perfume Decant Vials at 5ml: The Niche Format With Its Own Brief
A small but dedicated buyer segment orders 5ml vial boxes for perfume decanting. Perfume decant vials are typically 15 to 18mm in diameter and 70 to 90mm tall, much narrower and taller than essential oil or pharmaceutical formats.
The packaging requirements for a perfume decant brand differ from other 5ml vial applications:
Slim profile box: The narrow vial diameter means the box interior can be as small as 20mm wide. A standard 5ml vial box spec at 28mm wide will leave the perfume decant vial rattling with 4mm of clearance per side, which is too loose for a product being presented as a premium item.
Tall interior: The narrow tall vial with an atomizer or spray cap can reach 100mm total height. The box interior must accommodate this.
Premium print for the fragrance category: Perfume decant packaging buyers typically expect foil stamping, Spot UV, and matte lamination at minimum. The packaging is part of the luxury fragrance positioning.
Minimal compliance copy: Perfume decant brands selling to consumers typically carry only the fragrance name, concentration (EDP, EDT, EDP), volume, and brand name on the outer box. The space requirements are minimal compared to pharmaceutical or essential oil labeling.
Box Dimension Reference for 5ml Vial Applications
Starting-point dimensions confirmed against the actual vial before production.
| Vial Type | Typical Vial Dimensions | Total Height with Cap | Box Interior W x D x H | Insert |
|---|---|---|---|---|
| ISO 4R pharmaceutical crimp vial | 22mm OD x 42mm body | 55 to 62mm | 28 x 28 x 70mm | EVA foam or SBS cradle |
| Essential oil roller ball vial | 19mm OD x 63mm body | 75 to 85mm | 25 x 25 x 95mm | EVA foam |
| Cosmetic dropper vial | 22mm OD x 60mm body | 90 to 115mm | 28 x 28 x 125mm | EVA foam |
| Perfume decant atomizer vial | 16mm OD x 80mm body | 90 to 100mm | 22 x 22 x 110mm | Foam or scored card |
| Essential oil euro dropper vial | 22mm OD x 55mm body | 75 to 85mm | 28 x 28 x 95mm | EVA foam or kraft cradle |
Format Options for 5ml Vial Boxes
| Format | Best Application | Key Feature |
|---|---|---|
| Folding carton reverse tuck-end (SBS) | Pharmaceutical retail, cosmetic shelf | Full compliance copy panel, flat-shipping |
| Folding carton (kraft) | Essential oil artisan and organic brands | Natural look, dark ink print, eco-forward |
| Rigid magnetic closure | Premium essential oils, rare blends, perfume decant | Keepsake quality, premium unboxing |
| Two-piece lid and base (SBS or rigid) | Cosmetic serum gifting, premium samples | Clean lift-off presentation |
| Multi-slot insert outer box | Gift sets and collections (3, 6, 12 vials) | All vials in one organized presentation |
| Sleeve and tray | DTC essential oil brand, subscription kits | Brand reveal format |
Print and Brand Positioning for 5ml Essential Oil Boxes
The 5ml essential oil box carries a specific design brief challenge: the box is small, the label on the vial already carries the product name and botanical information, and the outer box needs to do brand work without duplicating the vial label.
Front panel: Brand name and logo. One botanical illustration or visual element that communicates the oil’s character. Keep it clean. The vial inside speaks for itself.
Back panel: Collection descriptor, brief usage note, storage guidance, and website or QR code. Not a full ingredient list on a 5ml format where space is limited.
Side panels: Brand color. Botanical pattern. The two elements that make the box recognizable from the side in a retail display.
Kraft-specific guidance: For natural brown kraft boxes, dark ink performs best. Black or deep forest green with a minimal line-drawing botanical illustration is the visual language that the essential oil consumer associates with quality. Avoid pale pastels on uncoated brown kraft.
Packaging Expert Tip: Measure the Roller Ball or Dropper Before Specifying, Not Just the Vial
Here is the sizing error that causes more 5ml essential oil vial box remakes than any other issue.
Buyers receive their roller ball or dropper vials and measure the glass body height. They order a box at that height or close to it. The roller ball cap is then installed. The vial is now 15 to 20mm taller than the glass body height. The box ordered at body height will not close.
A 5ml roller bottle has a diameter that is likely to be around 19 to 20mm and a body height of around 62 to 65mm before the roller ball cap. The roller ball cap itself adds approximately 15mm. Total height is 77 to 80mm. A box ordered at 65mm interior height will not close.
The correct sequence is: install the roller ball or dropper cap on the vial. Measure the total height from base to the top of the installed cap. Add 8 to 10mm for lid clearance. That number is the minimum interior box height.
For a standard 5ml roller ball vial at 62mm body height with a 15mm roller ball cap, the minimum interior box height is approximately 87mm. For a 5ml dropper vial at 60mm body height with a 35mm bulb dropper, the minimum interior box height is approximately 103mm.
Order from the fully assembled measurement. Every time.
What Every Hexa Order Includes
These terms apply to every order without exception or fine print:
- No die charges and no plate charges, zero hidden setup fees
- Low 100-box minimum for test runs or full production
- 8 to 10 business day turnaround from approved artwork
- Free dielines and ready-to-use templates
- Free 24/7 structural and print support from real packaging people
- 100% recyclable board stock on every order
The Box That Fits the Vial You Have, Not a Generic 5ml Size
Pharmaceutical crimp, essential oil roller ball, cosmetic dropper, or perfume decant. Each format measured fully assembled. Each box interior sized from those measurements. Each brand brief written for the channel.
